Connector Inspection System
Connector Inspection System
Key Inspection Items:
Spring Contact Height Measurement
PIN Spacing & Co-linearity Check
Inspection Speed: 0.1 sec/piece

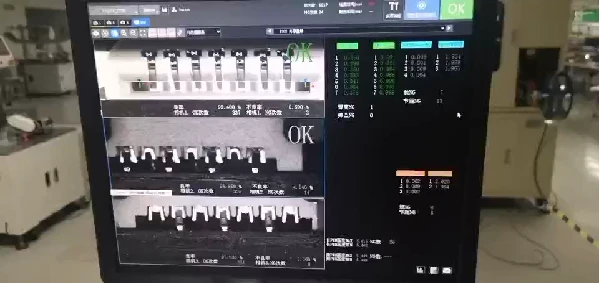

PIN Visual Defect Detection System
This system utilizes cameras and image processing algorithms to capture and analyze PIN images for defect identification.
Common Defects Detected:
✔ Bending/Tilting – Detects if PINs exceed allowable deviation angles.
✔ Missing/Damaged Pins – Identifies broken or absent pins.
✔ Plating Defects – Checks for uneven or non-compliant plating.
✔ Dimensional Errors – Verifies length, diameter, and critical tolerances.
✔ Corrosion/Rust – Detects surface degradation.
✔ Connection Issues – Ensures reliable mating and stability.
Technology Advantages:
✅ High-Speed Detection: 0.1 sec/pin
✅ AI-Based Algorithms: Adaptive thresholding for accuracy
✅ Automated Reporting: Real-time pass/fail classification
Machine Vision Benefits
Faster & more precise than manual inspection
Reduces human error & costs
Ensures product reliability via real-time image processing
